Description

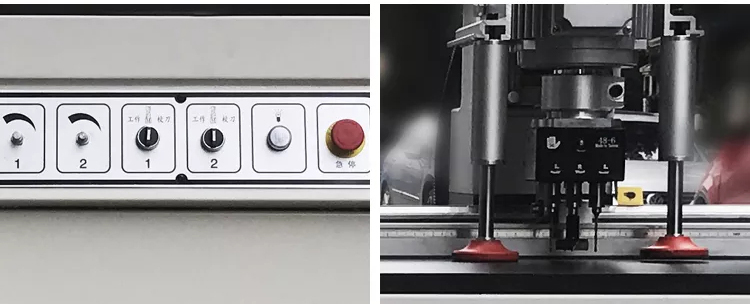

The control panel The drill head
Application

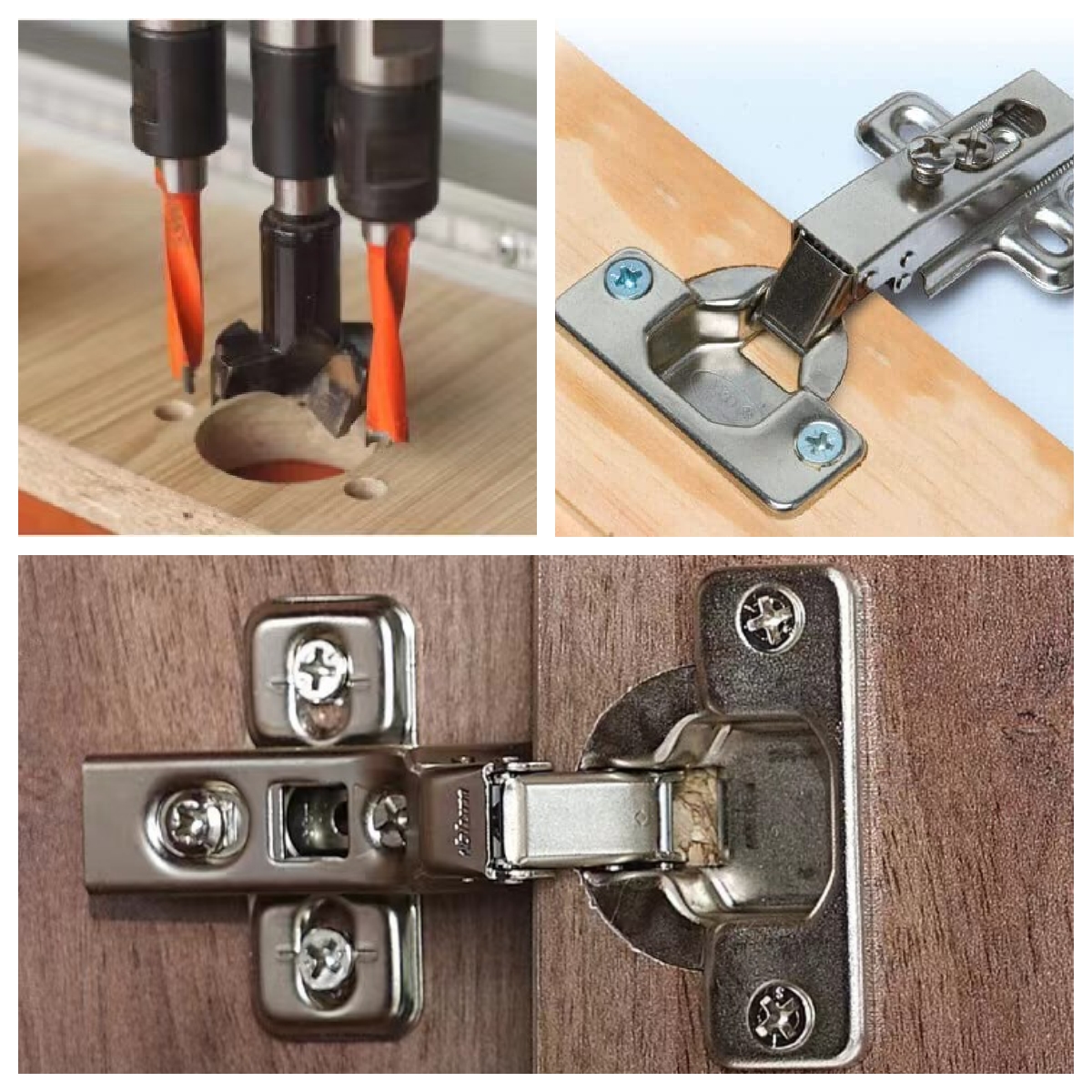

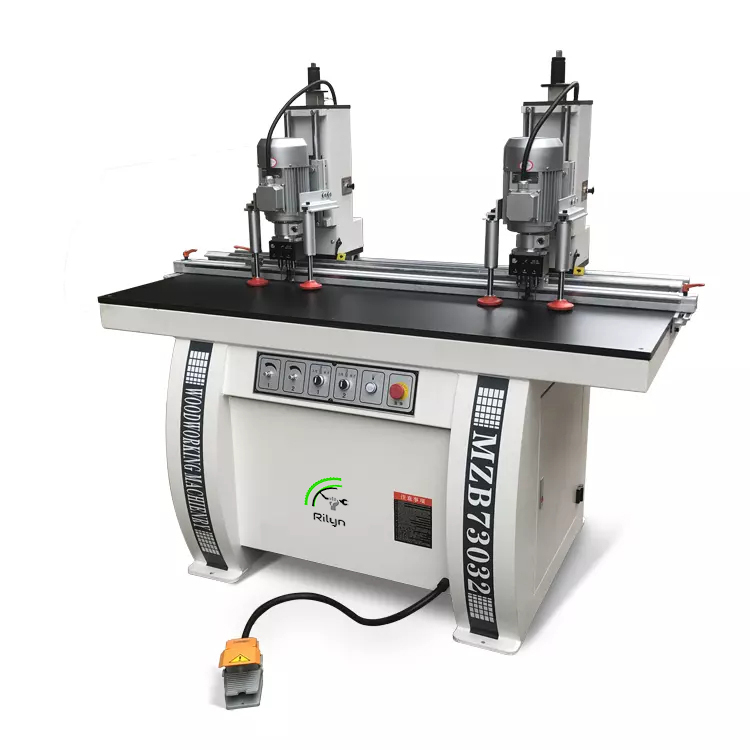

The 2 heads woodworking Hinge Drill machine MZB73032 is used to create holes for hinges in wood materials. It is typically used to pre-drill mounting holes for door hinges, but it can also be used for other types of woodworking projects. It is special for vertical drill work on panel furniture, and the maximum drilling diameter can be 35mm. It can finish two boards at one time.
Technical details
|
Specification For 2 Heads Hinge Drill Machine MZB73032
|
|
Line number
|
Double
|
The max. drilling diameter
|
35mm
|
|
Total motor power
|
1.5kw*2
|
Motor Type
|
Copper wire motor
|
|
The Max. drilling deepness
|
50mm
|
Drills number
|
2*3pcs
|
|
Dimension
|
1700*800*1550mm
|
Weight
|
500kgs
|
