Teflon high-capacity glue pot cleaning is more convenient 1. Pneumatic components all use the well-known brand AIRTECH. 2. An active pressure roller, their passive pressure roller, and pressure roller inclination angle make the edge banding more tightly. |
|
Intergrated PLC controller Easy to operate and maintain. |
|
Scraping function 1. With the automatic blowing function remove the residue after scraping. 2. New mechanical structure effectively improves the scraping effect. |
|
Pre-mill functions 1. Automatic cutting the edge of the panel to get a smooth surface. 2. Two high precision cutting spindle work. |
|
Model |

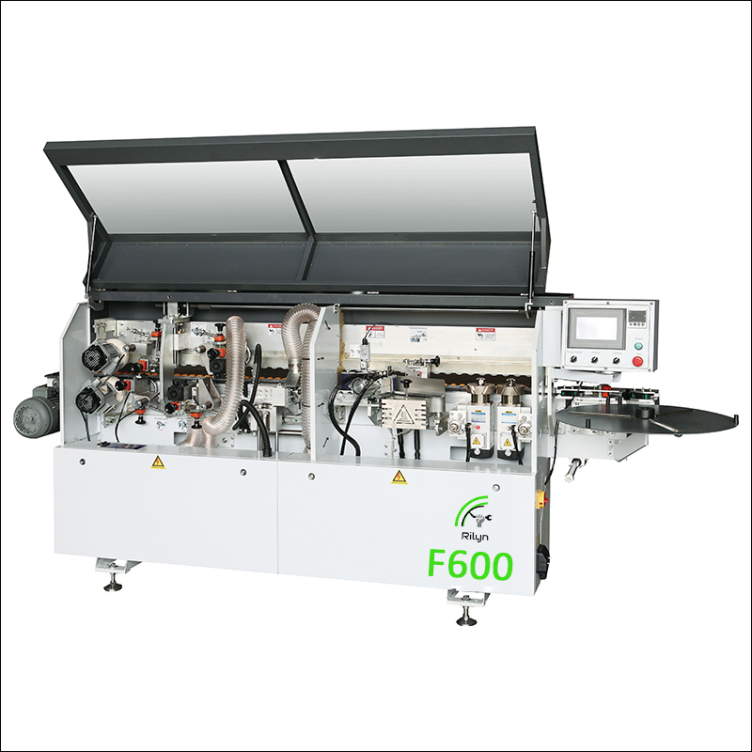

F600 |
|
Feeding speed |
9m/min |
|
The thickness of edge banding |
0.4-3mm |
|
Thickness of panel |
10-50mm |
|
Length of panel |
≥150mm |
|
Width of panel |
≥120mm |
|
Working pressure |
0.6MPa |
|
Min. dimensions of the panel |
150mm(L)*120(W) |
|
Total power |
10.9kw |
|
Overall dimension(L*W*H) |
2850*536*1316mm |
|
Net weight |
620kg |
