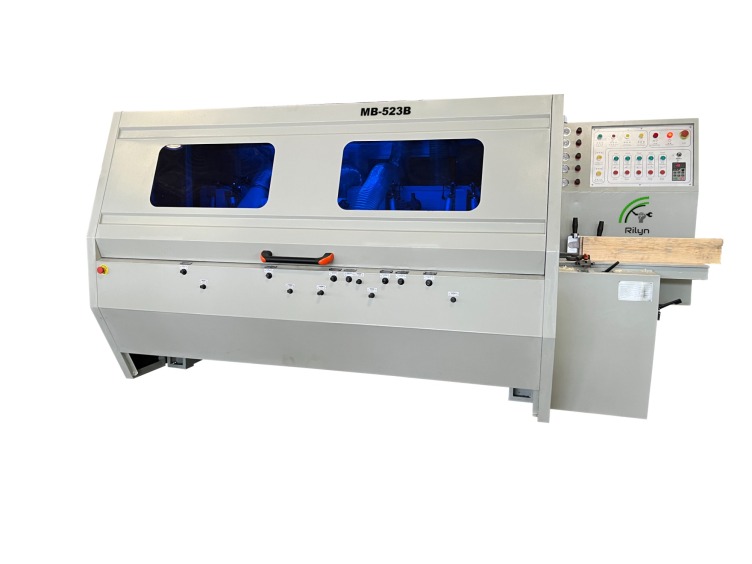

The Wood 4-Sided Planer Moulder MB-523B is a machine used in the woodworking industry to plane and shape the four sides of a piece of wood. It is typically used to produce finished lumber, mouldings, and other woodwork products with consistent dimensions and profiles. The machine operates by feeding the wood through rotating cutterheads that remove material and shape the wood according to the desired profile. The four-side moulder is commonly found in woodworking workshops, furniture manufacturing plants, and construction sites where precision and efficiency in shaping wood is required.It is widely used in the molding of wooden floors, wooden doors, hardwood lines, and large cutting lines. A variety of different arbor arrangements to meet the needs of diverse and batch production of wood products processing industry. It is very suitable for making sauna boards.
|
Models |
MB-523B |
|
Feeding Speed |
10-35m/min |
|
Spindle Speed |
7000r/min |
|
Spindle Dia. |
ø40mm |
|
Down Spindle Motor |
5.5kw |
|
Left&Right Spindle Motor |
4kw*2pcs |
|
1st Upper Spindle Motor |
9kw |
|
2nd Upper Spindle Motor |
7.5kw |
|
2nd Down Spindle Motor |
No |
|
Suction Port Diameter |
ø140mm |
|
Feed Motor Power |
5.5kw |
|
Total Power |
36.25kw |
|
Overall Shape(mm²) |
4050*1700*1750mm |
|
Weight |
3500kgs |
